Home > Other Products > Pinion Yokes > GM 9.5 Inch 14 Bolt Pinion Yokes > GM 9.5 Inch 14 Bolt Pinion Yoke 1350 series

GM 9.5 Inch 14 Bolt Pinion Yoke 1350 series

GM 9.5 Inch 14 Bolt Pinion Yoke 1350 series
Item# 26060881
$66.32

Product Description

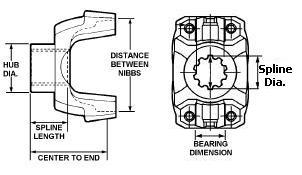

Pinion Yoke

Center to End

Distance Between
Nibbs

Hub Diameter
& Spline Length

Spline Dia. &
No. of splines

Bearing
Dimension

U-Joint Series

3.125"

3.622"

1.94"/2.114"
1.146"

1.312"
30 Spline

1.188"

1350

Manufactured by: American Axle Manufacturing


Accessories

Neapco 2-0053
Neapco 2-0053

Universal Joint

Distance from
Outside of cap to
Outside of cap

Bearing Cap
Diameter

U-Joint
Series

3.622"

1.188"

1350

Made in the USA

Manufactured by: Neapco

2-0053
Spicer 5-178X
Spicer 5-178X

Universal Joint

Distance from
Outside of cap to
Outside of cap

Bearing Cap
Diameter

U-Joint
Series

3.622"

1.188"

1350

Manufactured by: Spicer

5-178X
1350/1410 Series Strap Kit GM Applications
1350/1410 Series Strap Kit GM Applications

U-Joint Attaching Hardware
Bearing Strap Kit

CL-CL

Bearing Cap Dia.

Bolt Thread Dia.

Bolt Length

Series

1.66"

1.188"

.312"-24

1.31"

1350/1410

Manufactured by: Neapco

Replaces: Spicer 2-70-48X

1-0020
