Chrysler 8.75 Inch Pinion Yoke 7260 series

Pinion Yoke

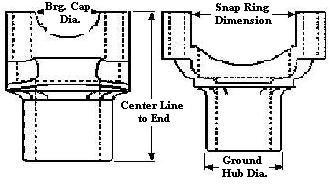

Center to End (S)	Snap Ring (E) Dimension	Hub Diameter (R) & Spline Length	Spline Dia. & No. of splines	Bearing(D) Dimension	U-Joint Series
3.35"	2.125"	1.875" 1.5"	1.188" 10 spline"	1.078"	7260

Manufactured by: Power Train Industries

Accessories

Universal Joint

Distance from snap ring groove to snap ring groove	Bearing Cap Diameter	U-Joint Series
2.125"	1.078"	7260

Manufactured by: Spicer

U-Joint Attaching Hardware
Bearing Strap Kit

CL-CL	Bearing Cap Dia.	Bolt Thread Dia.	Bolt Length	Series
1.50"	1.078"	1/4"-28	.62"	7260 Chrysler

Manufactured by: Neapco

Replaces: Spicer 2-70-38X
