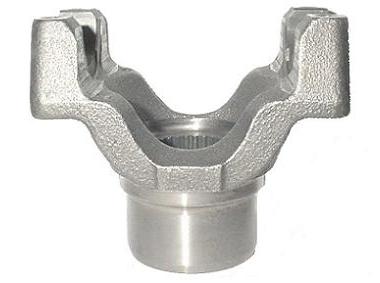

Chrysler 8.75 Inch Pinion Yoke 7290 series

Pinion Yoke

Center to End	Snap Ring Dimension	Hub Diameter & Spline Length	Spline Dia. & No. of splines	Bearing Dimension	U-Joint Series
3.375"	2.622"	1.875" 1.5"	1.188" 10 spline"	1.125"	7290

Manufactured by: Power Train Industries

Accessories

Universal Joint

Distance from snap ring groove to snap ring groove	Bearing Cap Diameter	U-Joint Series
2.622"	1.126"	7290

Made in the USA

Manufactured by: Neapco

Universal Joint

Distance from snap ring groove to snap ring groove	Bearing Cap Diameter	U-Joint Series
2.622"	1.126"	7290

Manufactured by: Spicer

U-Joint Attaching Hardware
Bearing Strap Kit

CL-CL	Bearing Cap Dia.	Bolt Thread Dia.	Bolt Length	Series
1.530"	1.125"	1/4"-28	.590"	7290 Chrysler

Manufactured by: Neapco
